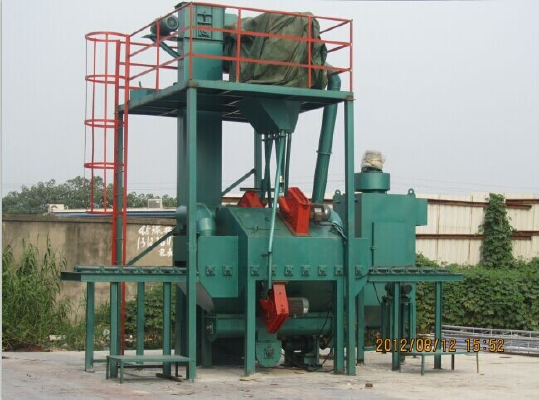

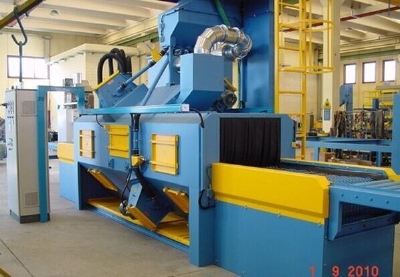

Q69 roller through type shot blasting machine
Q69 series steel plate profiles shot blasting machine suitable for ship,automobile,locomotives,bridges.Mechanical industries such as steel,profiles and parts of surface derusting.Can clean various specifications for steel plates,steel pipes,sections and components,will handle into special tooling start to cleaning,shot blasting machine device number according to yield the size of workpiece,design with surface projectile cleaning device,can be equipped with automatic unloader device.
| Q6910 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 | |
E ffective cleaning width | mm | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
D imension of inlet opening | mm | 1000*400 | 1200*400 | 1500*400 | 2000*400 | 2500*800 | 3000*800 | 4000*400 |
L engh of cleaning plece | mm | 1200~12000 | 1200~12000 | 1200~6000 | 1200~12000 | 3000~12000 | 2400~12000 | 4500~18000 |
R oller speed(stepless speed regulation) | m/min | 0.5~4 | 0.5~4 | 0.5~4 | 0.5~4 | 0.5~6 | 0.5~4 | 2~8 |
T hickness of cleaning steel plate | mm | 3~60 | 4~60 | 4~60 | 4~60 | 4~60 | 4~110 | 4.5~100 |
S pecification of the treated sectional bars | - | - | [≤ 20 <≤ 16# | [≤ 20 <≤ 16# | [≤ 20 <≤ 16# | - | 60*8~30*1000 | - |
A brasive flow rate | K g/min | 4*250 | 4*250 | 4*250 | 6*250 | 6*250 | 6*480 | 8*480 |
A brasive initial filling | kg | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
A djusting height rolling brush(scraping plate) | mm | non | 200 | 350 | 450 | 600 | 850 | 900 |
V entilation capacity | m 3 /h | 12000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
P ower(excluding dedusting) | kw | 78 | 80 | 115 | 160 | 230 | 260 | 360 |
